Hayman Reese
Hayman Reese
Only 5 products left
Pickup available at 4 Hearle Avenue
Usually ready in 24 hours
All Products we sell are Brand New with a Quality Guarantee.
All Parts are sold with a 12 Month Warranty.
Product Dispatched to you Within 24 hours.
See Postage Cost at Checkout.
Contents of package are what's shown in the Photos above.

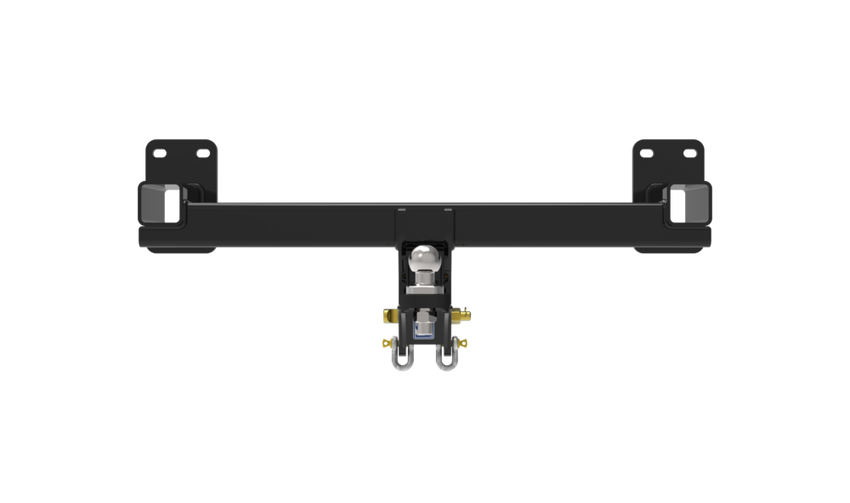

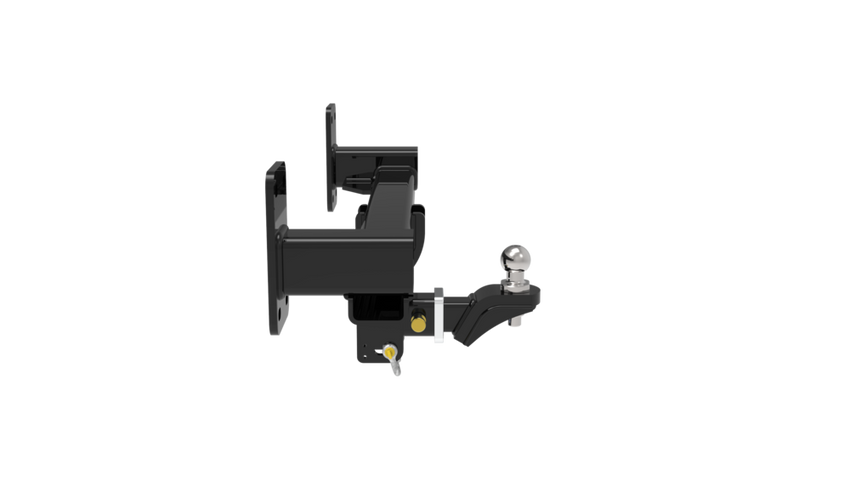

With a tow capacity of 3500kg and a ball weight of 350kg this towbar is specifically designed for towing caravans, large trailers, boats or horse floats. The Towbar has a removable Towball Mount (TBM) with 50mm towball, rated D-shackles and Smart Pin.
| Towbar Rating | 3500kg |
| Ball Weight | 350kg |
| Bumper Cut | Yes |
| Product Dimensions | 115 x 50 x 25cm |
| SmartCODE Compatible | No |
| Installation Required | Yes |
| Finish | Powder coated |
| Tail Length | 1800mm |
| Colour | black |
| Hitch Type | 50mm square hitch receiver |
| Exposed/Concealed Fitment | Concealed |
| LUG | 21375 |
| Fitting Difficulty | Specialist Installer |
| ECU | 04826 |
| Towing Notes | Electric Brake = Brake Prep Connector. Ensure when towing coasting mode / ECO mode must be disable. RPA is via switch on dash. Vehicle trailer fuse location F240/F267/F289. |
| Towbar Installation Time | 120 mins |
| Wiring Installation Time | 60 mins |
FITTING INSTRUCTIONS
https://imageapi.partsdb.com.au/api/Image?urlId=A5zmdRKUvMA3%2FFaR9bqrQDYPxZQDvGdrcUcBueK5F6pI7pA365J8cvMV%2F8131pb2
